ADOPTINGOUR PRODUCT AND TECHNOLOGY
ADOPTINGOUR PRODUCT AND TECHNOLOGY
ECO FRIENDLY
No chemical needed to remove the contaminants and chemical ingredients.
ENVIRONMENTALLY FRIENDLY
Through the treatment of wastewater, the amount of waste that is usually released into the environment is reduced thus improving environment°s health
ZERO DISCHARGE
Lowered waste volumes decrease the cost associated with waste management. Recycle water on site, lowering water acquisition costs and risk. Improved environmental performance, and regulatory risk profile for future permitting
SUSTAINABLE ENVIRONMENTS
Sustainability supports the well-being of individuals and communities. Sustainability promotes a better economy where there is little waste and pollution, fewer emissions, more jobs, and a better distribution of wealth
What isRT ECO™
What isRT ECO™
Wastewater system that treatment Palm Oil Mill Effluent becomes WATER and SOLID so it does not require Wastewater Pond.
Which will produce water that can be reused and solid can used as fertilizer.
RT ECO™ unique Hybrid Advanced Waste water treatment system incorporates electro-coagulation & electro oxidation cells to treat flow back water in a simple once through process making it suitable for reuse.
RT ECO™ Hybrid electrochemical effluent treatment systems are fully automatic, skid mounted, containerized and are designed for continuous operation which converts effluent into reusable water and operates even in remote locations.
Technology ForENVIRONMENTAL & SUSTAINABLE
Technology ForENVIRONMENTAL & SUSTAINABLE
- Compact system and easily expandable, installed as a modular unit
- Easy operation and maintenance
- Producing non-potable quality treated water that you can be applied for mill processing or boiler feed water
- Local technology without using any special microbial or chemical
- Reduce odour and greenhouse gas (GHG) emissions by eliminating the conventional anaerobic ponding system
- Green hydrogen as alternative energy source
* System design meeting explosion proof classification
* Certification as per operation location / country
Model & CapacityRT ECO™
Model & CapacityRT ECO™
| Model RT ECO | Processing | Mill Capacity |
POME (M3/HR) |
|---|---|---|---|
| POW - 0.6 MLD | 600 M3/Day (25 M3/Hr) | 30-33 TPH POM | POME = 33x60% 20 |
| POW - 1.2 MLD | 1200 M3/Day (50 M3/Hr) | 60-65 TPH POM | POME = 65x60% 42 |
| POW - 2.4 MLD | 2400 M3/Day (100 M3/Hr) | 90-130 TPH POM | POME = 130x60% 78 |
| POW - 3.6 MLD | 3600 M3/Day (150 M3/Hr) | 200 TPH POM | POME = 200x60% 120 |
| POW - 4.8 MLD | 4800 M3/Day (200 M3/Hr) | 265 TPH POM | POME = 265x60% 159 |
POMERaw - Treated - Standard
POMERaw - Treated - Standard
| Parameter | Unit | Raw Effluent |
Treated Effluent |
Standard (Permen LH No.5, 2014) |
|---|---|---|---|---|
| pH | 4-5 | 5-9 | 6-9 | |
| BOD | mg/L | ±25.000 | 50 | 100 |
| COD | mg/L | ±50.000 | 300 | 350 |
| O & G | mg/L | ±6.000 | 2 | 25 |
| TSS | mg/L | ±20.000 | 100 | 250 |
| Nitrogen Total (N) | mg/L | ±600 | 20 | 50 |
| Color | Dark Brownish | No Color | No Color | |
| Odour | Stinky | No Odour | No Odour |
Basic PrinciplesRT ECO™
Basic PrinciplesRT ECO™
Advanced Hybrid Electro-Chemical TechnologyPT Aqua Jaya Sumber
Advanced Hybrid Electro-Chemical TechnologyPT Aqua Jaya Sumber

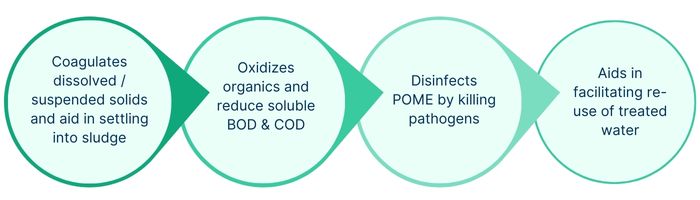

Aqua Jaya Sumber Advanced Hybrid Electro-Chemical technology is a combination of 2 process ie Electro-Coagulation (EC) and Electro-Oxidation (EOx).
The combination of this 2 reactors using specific metals is proven in managing the treatment of POME.
TECHNOLOGYEFFICIENCY
What Does It Removes?
Advanced Hybrid Electro-Chemical Technology is very efficient in removing:
SUSPENDED SOLIDS
TURBIDITY
ALGAE
ODOUR
DISINFECT WATER
FATS, OIL & GREASE
HEAVY METALS
